Airta Guide

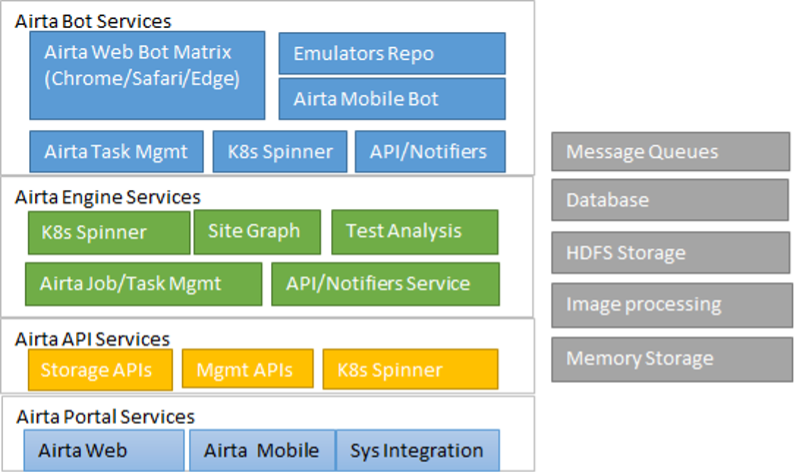

Design Architecture

Airta platform mainly include 4 major services, Airta Bot Service, Airta Engine, Airta Portal, and Airta API Service, and each service will provide a k8s spinner to auto-scale (based on server capacity load factor).

Domain Object Model

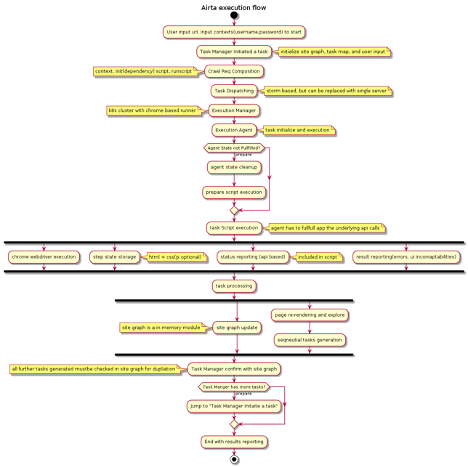

From customer’s perspective, a complete user scenario that only involved Airta Platform can be described as below

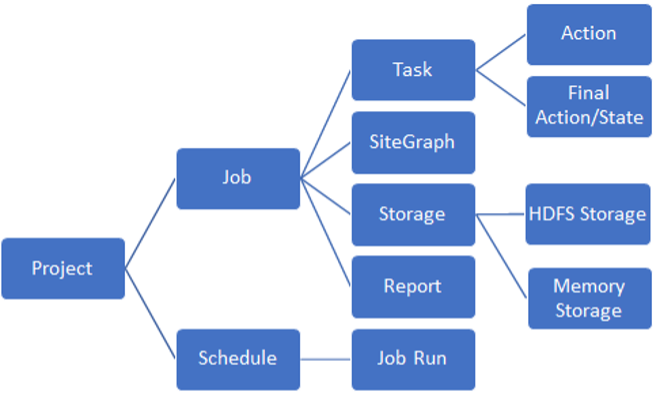

Business Object Model

User Project
User project is only object that user create, it include all key data that airta platform need to peroform the key component project include is input library (which designed as below

Input Library, the format defined as below

Access entry: user can specified 1-multiple entry to access system, which will be triggered as multiple tasks for system to begin.

For page element input, it will include

1. Fuzzy match expression to tell system for a given input element, if it can be used to generate input

e.g. Username|用户名|user**, such a expression will tell system, if a element surrounded text match username or match 用户名, or starts with user, then we can use this input item to generate input

2. Value, value could be const value, expression for dynamic generation

3. Scope, scope will limit the usage for this input, e.g. url in [/login]. Means it will only applied to a page with url as /login

So the input library will only be composed after page state is returned for further analyze, which make sense, for any system, first interaction won’t be input , instead it should be render UI from system

Job

A job is a instance from project, it’s based on project schedule or user manually kick off, a job will be performed by airta engine, from a project access entry, iterate all possible path till there is no new navigation in given scope, or no more actions can be performed on those navigated pages

In order to do that, it will trigged multiple tasks

Task

A task is a implemented action, from certain job, which represented a serial operations on web page, or mobile app, the task’s purpose is to carry out the exploring commands, track all elements it find, and report the final state to Airta engine, a task is the single action that dispatchable to airta bot service

Note: a task may not be generated by a job, airta engine may use a orphan task to perform some system actions or status check for bot service

A task is implemented in nanoscript (which explained in latter sections)

Site Graph

A site graph is a centralized navigation repo for any job , the purpose for a site graph is to
1. Track history of actions for a given job

2. Generate visit path for any connected page links (e.g. from home page to specific feature page)

3. Optimize the navigation performance, use shorted path to reduce the browser/mobile app navigation steps, and increase the airta testing performance, reduce iteration time

4. Tree/graph to tree/graph comparison, to find out potential changes, and user study on user experience, etc

So the site graph is critical to have, even we can use a short site map list to replace it, but the optimization and performance improvement is the key to airta

Sitegraph will be stored in each engine instance for each project (it’s not consuming large memory chunks)

For persistency and scalability, sitegraph will also be compressed and stored in centralized memory storage (redis?)

Task Dispatching

Task dispatching is the major topic, normally it would consider the below factors in airta platform
normally this dispatching won’t be a performance issue, so mainly focused on the below items

1. conditional/context aware dispatching

e.g. some task may only suitable for agent bot that has more memory, or it’s targeting specific node

2. reliable, repeatable, which means task dispatch should always get executed if success, and dispatch result should get reported as soon as possible

repeatable means task execution failure can be repeated on any node (given fact that condition if may have, and it may not fit into current node) , so the repeating can not be just offline retry

3. async reporting and multiple source reporting

reporting is always aynsc mode for most task dispatching system, but multiple source reporting is also something airta platform need to solve, it simply means a ondemand event notification system, currently it was leveraing nanoscrpt to do that, which might need to enhance, since task failure may cause no event delivered.

4. Redundant event filtering, as retry or repeating happens in system, no matter if it’s event event based or api based, there will be duplicated events (callbacks), for now we use ID and simple overwritten to solve this issue which means event with same job id, taskid, or step id, will always overwrite previous ones

So based on those requirement, API based or Message Queue based both have pros and cons
.

Service Integration

Airta platform provide dual way service integration with customer existing CI/CD or bug tracking systems if possible Airta Update Agent If customer IT system is behind the firewall, not accessible via internet, airta update agent is there to handle this, it will communicate via standard oauth sec and syncing with airta platform, as well as internal CI/CD platform, customer just need to configure those internal project specs at airta portal, airta update agent will hook up the internal system events, with airta platform, trigger runs, update to internal systems, or do reverse way, kick off the internal CI/CD dependent release/build process once airta provide positive feedbacks. Airta Integration Service This is part of the API service, it provide callback over internet, interact with customer’s system, data encrypted and secure, provide dual way integration as well.
